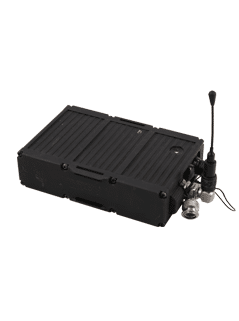

Gateway-S (Short-range Radio Gateway)

The Gateway-S is an intelligent base station where sensor information is collected and stored. It is equipped with a radio for communication with deployed sensors along with a USB port for connection to backbone networks.

Designed as a compact and lightweight base station, the Gateway-S communicates with any of the deployed Flexnet sensors and cameras in the mesh network within a 1km range. The Gateway-S can be configured and run in two different modes: base station and mobile base. The Gateway-S can be deployed as an autonomous base without being connected to a computer.

As the Gateway-S is able to store data from deployed sensors and cameras, the system can be left unattended for weeks. When set in “silent mode”, alarms and images can be stored until retrieved by the operator. The Gateway-S can be connected to 3G/4G modems, satellite communication or other backhaul networks via TCP/IP, to allow remote communication and control. The size and weight of the Gateway-S makes it ideal for shorter missions.

Specifications

Size106 mm x 40 mm x 175 mm
Weight80.9 kg
Battery5 days on internal battery
Temperature-32 to +71°C in operation
EnvironmentalMIL-STD-810
EMCMIL-STD-461
Output powerShort-range radio: 0.5 W

Capability

  • Compact & lightweight base station
  • Base or mobile base functionalities
  • 1000 m communication range
  • USB interface for communication with backbone network
  • Encrypted communication (AES-256)
  • Data storage and silent mode capacity
  • Anti-tampering functionality
  • GPS for self-localization
  • An external battery can be connected to extend operational time
